TR-430D

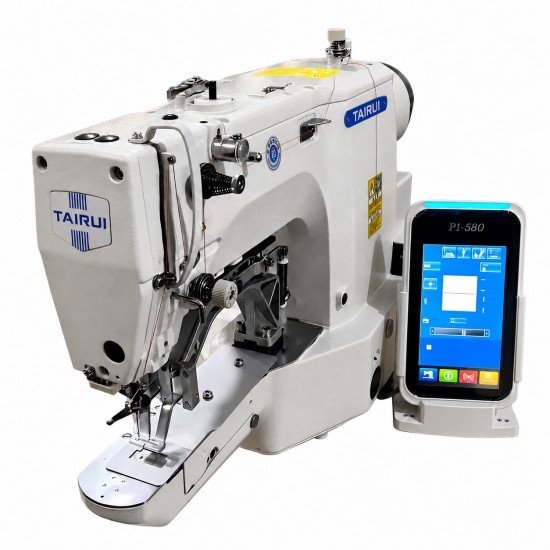

TR-430D Computerized Bar Tacking Sewing Machine
- Productivity improvement with high-speed 2700 sti/min sewing, direct drive servo motor, and pre-programmed bar tack patterns for efficient mass production
- Reduction of material tear-off and sewing defects with high-density, uniform bar tack stitches, ideal for stress-bearing areas of garments and bags
- Consistent, highly reproducible stitch quality via precise pattern control, adjustable stitch density, and stable thread tension
- Superior usability with a 7-inch touchscreen controller, built-in common bar tack presets, and intuitive operation for workers
- Stable and durable long-term performance with an automatic lubrication system and reinforced industrial-grade structure
Information
Features
– Precise, High-Quality Stitch Performance

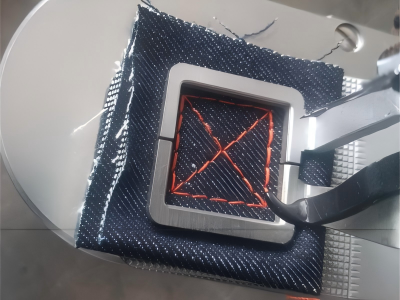

• Delivers uniform, high-tension bar tack stitches with clean, crisp edges, as shown in the square-cross stitch on denim fabric, with no skipped stitches or loose threads
• Computer-controlled precision ensures consistent stitch placement and pattern accuracy, even in high-volume production runs
• High-tensile-strength stitches provide reliable tear resistance for stress-bearing areas, ideal for workwear, outdoor gear, and heavy-duty applications
• Adapts seamlessly to a wide range of materials, from thin cotton and denim to thick canvas, leather, and multi-layer webbing
• Advanced feed system maintains even stitch density and prevents fabric puckering or distortion, even on multi-layered thick materials
• No frequent parameter adjustments required when switching between thin and thick fabrics, improving overall production efficiency for diverse product lines
– Versatile Programmable Stitch Patterns

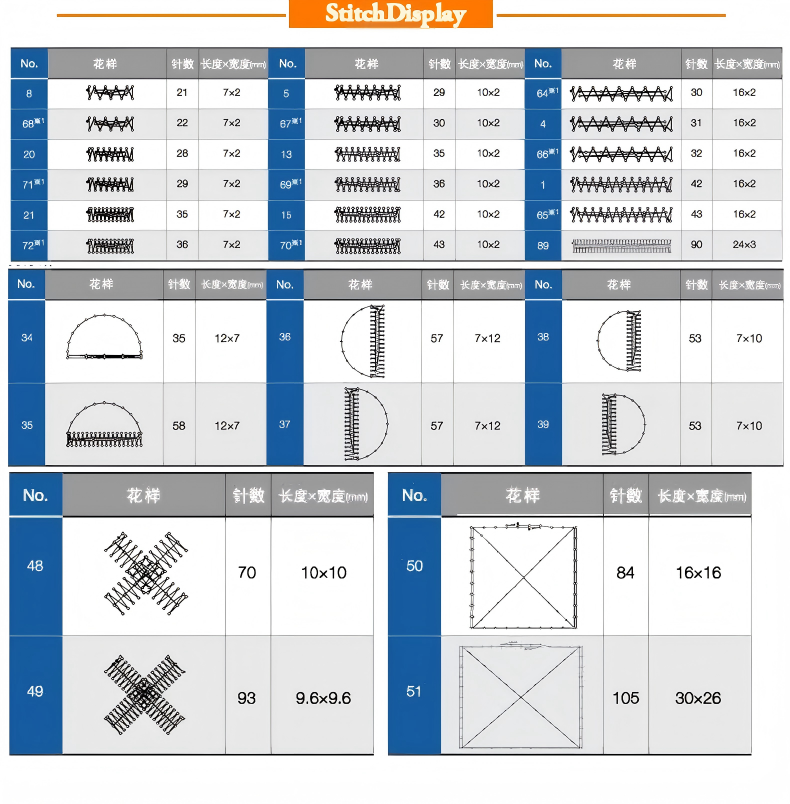

• Pre-programmed with a wide range of bar tack patterns, including straight-line tacks, cross-shaped reinforcements, square frames, and semi-circular eyelets, covering diverse industrial applications
• Adjustable stitch parameters (stitch count, length, and width) with sizes ranging from 7×2mm to 30×26mm, meeting different reinforcement needs from small belt loops to large webbing connections
• Multiple preset patterns eliminate the need for frequent machine changes, supporting efficient production for denim, workwear, and bags
